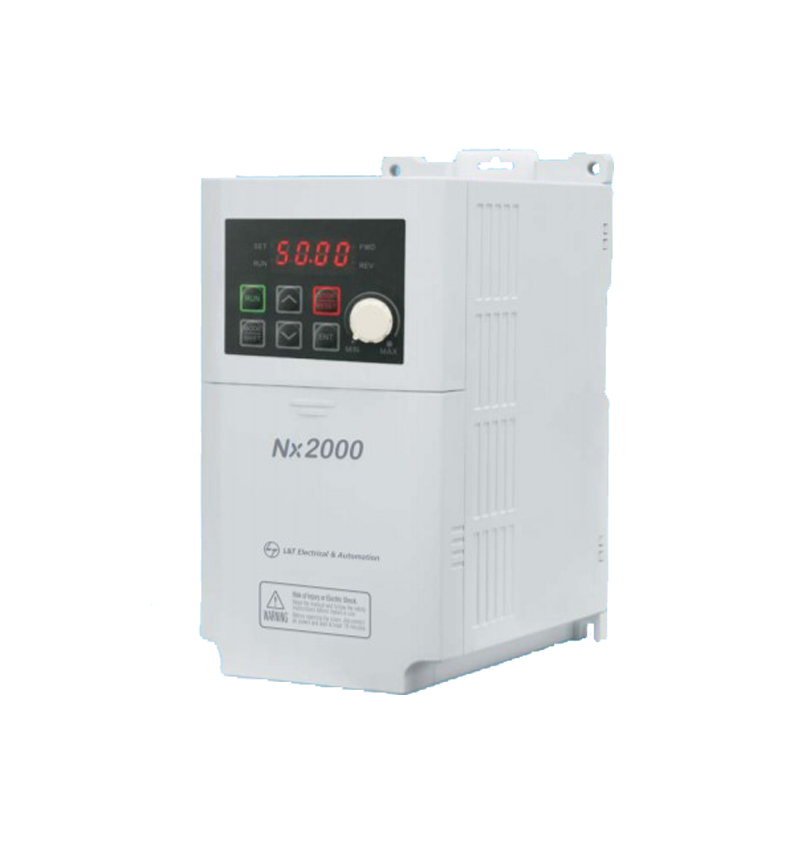

Nx2000 : Single Phase 230V (0.2 - 2.2kW)
The New Reliability Edge
The Nx2000 series adds a new dimension to L&T Electrical & Automation E&A's AC drive solutions. Built to E&A's stringent quality standards, the Nx2000 Series AC drive is tested and certified to meet global benchmarks, thus giving you the assurance of total reliability.
Compact, lightweight, easy to install, operate and service - the Nx2000 Series is perfectly suited for conveyors, pumps, fans and textile machinery. It handles load up to 11 kW, and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.
Features
- Built-in EMC Filter
- New UL61800-5-1 Design
- Built-in DB Unit : ≥1.5kW
- Built-in Modbus Communication
- User - Friendly Design
- DIN - rail mountable
- Side-by-side installation
- Easy connection with Rj45 port
- Modbus / Smart Copier / Remote keypad / DriveConnect
Specifications
- Operation Mode : Select keypad, Terminal strip or Communication operation
- Frequency Setting : Analog : 0~10 [V], 4~20 [mA], 0~20 [mA] Digital : Keypad
- Operation Function : Anti-forward and reverse direction rotation, Frequency jump, Frequency limit, DC braking, Jog operation, Up-down operation, 3-wire operation, Dwell operation, Slip compensation, PID control, Energy saving operation, Speed search, Automatic restart
