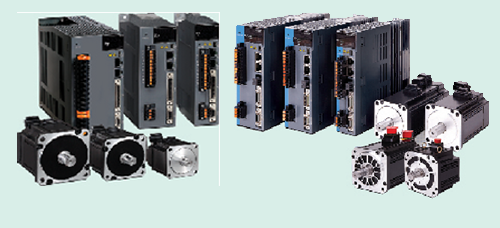

Servo System
Specification
- Capacity : 0.1kW to 5kW (200V AC) & 1.0kw to 15kW(400V AC)
- Speed : 1500rpm / 3000rpm
- Control : Pulse / Analog or Network
- Encoder : Absolute type (standard)
- Options : Oil Seal, Brake
LTSD - P Pulse / Analog Type Drive
- Supports Position Control by pulse input
- Embedded Position Controls :
- Up to 64 Index Tables allows position control through I/O combination / table configuration
- Possible to use without upper controller
- Modbus RTU Protocol (RS - 422, 2 x RJ45 connector)
- Parameter management through HMI
Easy To Use
- PC Tool for configuration, tuning & debugging
- Easy gain tuning with automatic inetia estimating function
- Rotary switch to configure the drive node address
High Performance
- 1.6kHz Frequency response
- 19bit Absolute encoder (standard)
- FPU (Floating Point Unit)
- 16kHz switching frequency
- scalable analog output
Intelligent Control
- Notch Filter for responance suppression
- 4 - step notch filter
- 2 - step vibration suppression filter at the load position.
- FFT function for real - time frequence analysis
- STO Mode
- Various gain switching modes
LTSD - N Network type Drive
- High speed position capture function
- Built - in EtherCAT Interface :
- 100BASE - TX Ethernet based communication
- High speed, real-time capability and precise synchronization mechanism
- Max. 100m between nodes (2 x RJ45 connector)
- Supports Various Operation Modes :
- (CSP , CSV, CST, PP, PV, PT, HM, IP, ets..)
- Control Up to 16 axis, Supports Virtual Axis
